3 Roller Plate Rolling Machine Max Rolling To 40mm Plate Hydraulic Power
Description:
1. Capable of various kinds of metal sheet with lower cost;
2. Stable and reliable system, easy operation;
3. Lower cost compared with other equipment;
4. High efficiency, used for many products;
5. Guaranteed stability and reliability.
Specification:
| Model | W11-8-2000 | W11-12-3000 | W11-20-2500 | W11-60-3000 |
| Max.Plate Thickness | 8 | 12 | 20 | 60 |
| Max.Coil Width (mm) | 2000 | 3000 | 2500 | 3000 |
| Coil Speed (m/min) | 4 | 3.5 | ||
| Main Motor power (kw) | 7.5 | 15 | 22 | 75 |
| Option: | □ Hydraulic Rolling □ Mechanical Rolling | |||
Competitive Advantage:
1. The straightedge length can be set freely, the upper roller press to pre-bend.
2. Parameters are controlled by NC, easy for operation, improve the productivity greatly
3. The upper roller is like a drum, the lower rollers assorted with it through support rollers.
Bend continuously, can roll ideal products from thin to thick plates widely.
Main Structure:
This equipment should be composed of main structure, hydraulic system , electricity control system and cone device.
1. The main structure
The main structure is composed of upper roller , down rollers and level motion device support rolls device , tuning device , balance device, lubricate device , left and right work frame and bottom plate.
1) The upper roller
upper rolls device composed of main cylinder, upper bearing pedestal, upper rolls, double self-aligning bearing .two cylinders provide the pressure for upper roll bending , main cylinder working pressure is 20 Mpa ,max pressure of upper roll multiply 0.8 times to compensate for pre-bending. Upper roll two ends fit with double self-aligning bearing to reduce the friction and motor power.
2) Support device
Composed of sloping block device, support device, support rolls bearing pedestal, support lifting device, support rolls can adjust up and down. The adjustment depend on plate speciation. The material of support is 45# , heat treatment is HB220-280, it made up in helix sharp to protect the surface.
3) Main drive device
It composed of motor, hard gear speed reducer, output gear, main motor can tuning in two direction and provide bending pitch of strand.
4)Overturn device
Composed of ram, bearing, tuning cylinder
5) Balance device
Composed of balance compact, screw
2. Hydraulic system
Composed of Y series motor, gear pump , valves , oil tank, pipe and so on.
Max pressure is 20 Mpa , testing pressure is 24 Mpa , pressure adjusted by overflow valve, system working pressure 0-19 MPa , normal pressure is 15Mpa . the valves adopted from Taiwan.
3. Electricity system
Composed of electrical box, operation table , manual button . the power is 380V50HZ adopted PLC control system code with longevity easily operate. Whole bending process can read from the indicator setting on the control box.
| Max Thickness: | 40mm | Coiling Speed: | 3.5m/min |
|---|---|---|---|
| OEM: | Yes | Place Of Origin: | Jiangsu,China |

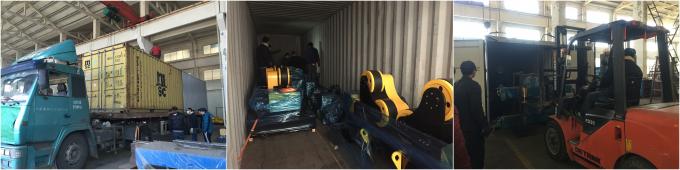

We will provide standard commercial packaging, be suitable for transportation by ground and sea transportation, supply safety and integrity of the goods while in transportation.
Within 24 hours, we will inform the buyer of the loaded container number and seal number. Upon shipment, we will supply: 1. packing list 2 originals 3. Invoices 4. Bill of loading 5. Certificate of origin
What can we do for you:
1. Give you high quality products.
2. Give you five-star price.
3. Give you good after-service.
4. Give you suitable recommendation.
5. Give you professional technical guide.
