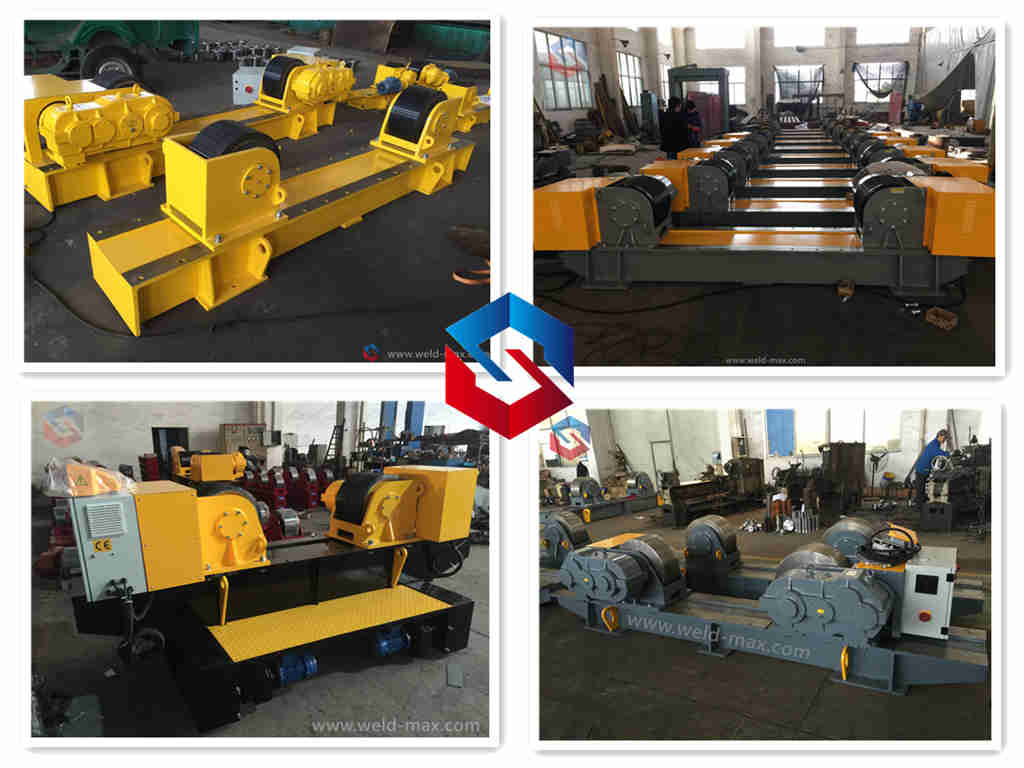

40T Fixed Adjustable Welding Turning Rolls With 2*1.5KW Motor For Pressure Vessel Welding
40T Fixed Adjustable Welding Turning Rolls With 2*1.5KW Motor For Pressure Vessel Welding
Quickly Details:
Type:Conventional Welding Rotator
Brand:Weld-Max
Condition:100% brand new
Model number:HGK
Capacity:5Ton – 1000Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Product Description:
Our designed manufactured HGK type Welding Tank Rotator absorbs the excellence from the same products from the domestic and forign market manufacturing, which is made according to the pressure vessel manufacturer’s requirement.Drive rotator is through AC variable frequency motor separate driver reducer then through gear transmission unit to driver the roller to rotation,it’s realize driver reduer used gear box structure type ensure that can drive the vessel to rotation,used is more reasonable, also with higher transmission precision, roller shelf life longer.
Product Parameter:
| Type | Max loading (kg) | Vessel diameter(mm) | Dia. and width of the wheel(mm) |
Roller linear velocity(m/h)
6-60
|
Power of motor(kw) | |
| Rubber rollers | Metal rollers | |||||
| HGK-5 | 5,000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 2X0.37 | |
| HGK-10 | 10,000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 2X0.55 | |
| HGK-20 | 20,000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 2X0.75 | |
| HGK-40 | 40,000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 2X1.5 | |
| HGK-60 | 60,000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 2X2.2 | |
| HGK-80 | 80,000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 2X3 | |
| HGK-100 | 100,000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 2X3 | |
| HGK-150 | 150,000 | Φ1000-6000 | / | Φ620×220 | 2X4 | |
| HGK-250 | 250,000 | Φ1800-7500 | / | Φ660×260 | 2X5.5 | |
| HGK-500 | 500,000 | Φ1800-8000 | / | Φ750×400 | 2X7.5 | |
Application:
1Pressure vessels.
2Pipe manufacturing industries
3Wind power fabrication
4Chemical & fuel storage tank fabrication
5Any heavy cylindrical job
