40T Simple Operation Self-aligned Rotator With PU Wheels And Low Noise
40T Simple Operation Self-aligned Rotator With PU Wheels And Low Noise
Quickly Details:
Type:Self-aligning Welding Rotator
Brand:Weld-max
Condition:100% brand new
Model number:HGZ
Capacity:5Ton – 150Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Application:
1Pressure vessels.
2Pipe manufacturing industries
3Wind power fabrication
4Chemical & fuel storage tank fabrication
5Any heavy cylindrical job
Product Production:

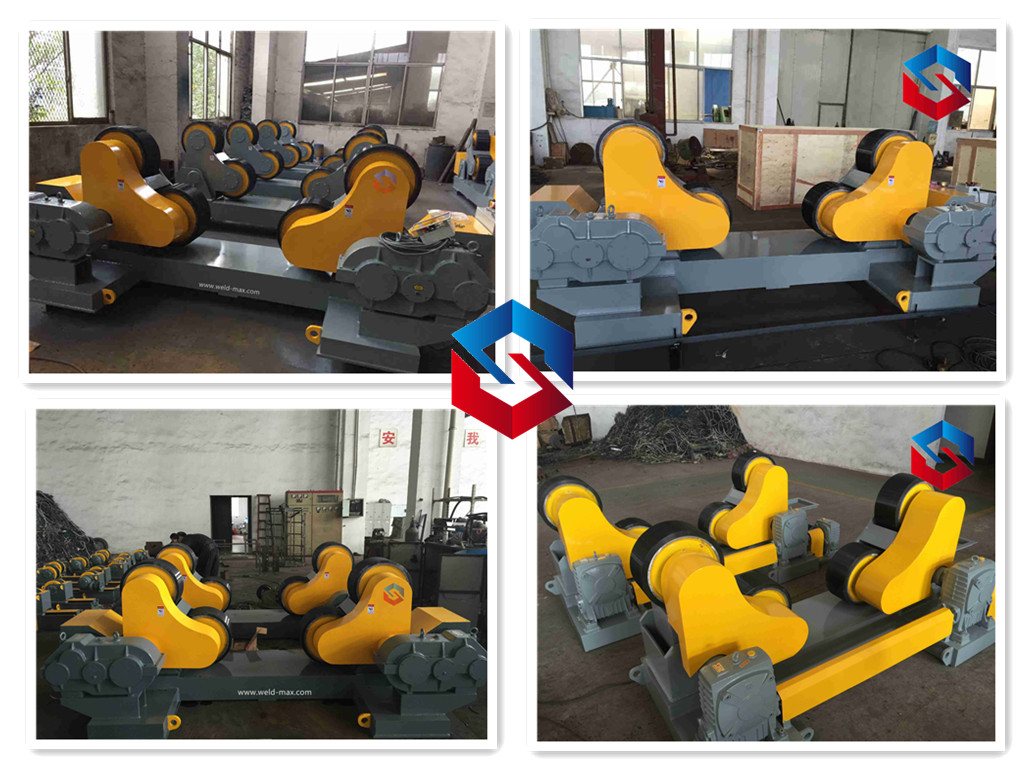

Roller used import material of PU and add big the touch area.The roller bed used the plate weld with more higher strength that can ensure used long time cab’t be transformation,also they make process technology used synchro so it’s will ensure drive and idler of roller center same.Drive rotator is through AC variable frequency motor separate driver reducer then through gear transmission unit to driver the roller to rotation,it’s realize driver reduer used gear box structure type ensure that can drive the vessel to rotation,used is more reasonable, also with higher transmission precision, roller shelf life longer.
Product Parameter:
| Type | Max loading (kg) | Vessel diameter(mm) | Dia. and width of the wheel(mm) |
Roller linear velocity(m/h)
6-60
|
Power of motor(kw) | |
| Rubber rollers | Metal rollers | |||||
| HGZ-5 | 5,000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 0.75 | |
| HGZ-10 | 10,000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 1.1 | |
| HGZ-20 | 20,000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 1.5 | |
| HGZ-40 | 40,000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 3.0 | |
| HGZ-60 | 60,000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 4.0 | |
| HGZ-80 | 80,000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 2X3 | |
| HGZ-100 | 100,000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 2X3 | |
| HGZ-150 | 150,000 | Φ1000-6000 | / | Φ620×220 | 2X4 | |
| HGZ-250 | 250,000 | Φ1800-7500 | / | Φ660×260 | 2X5.5 | |
| HGZ-500 | 500,000 | Φ1800-8000 | / | Φ750×400 | 2X7.5 | |
