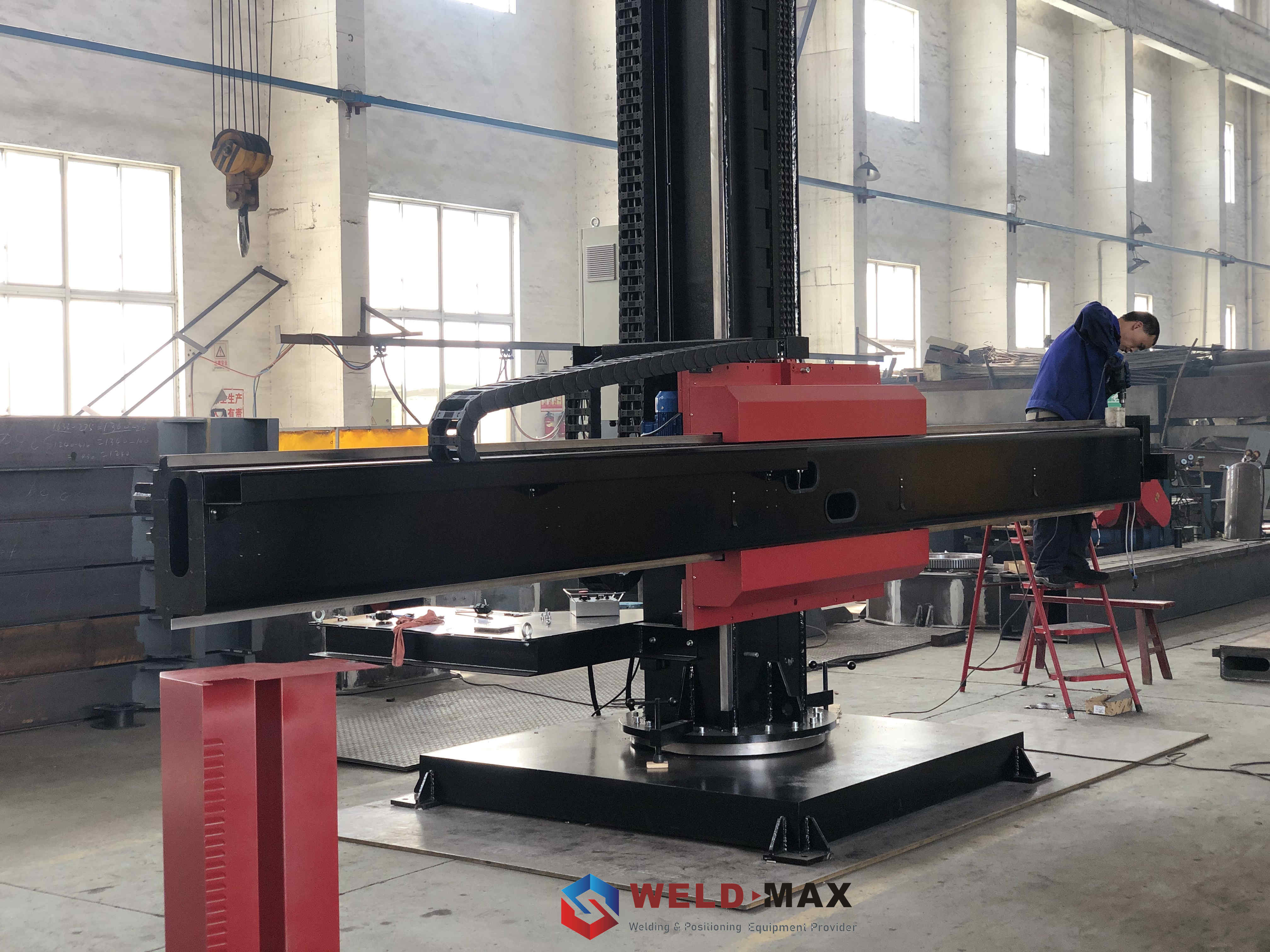

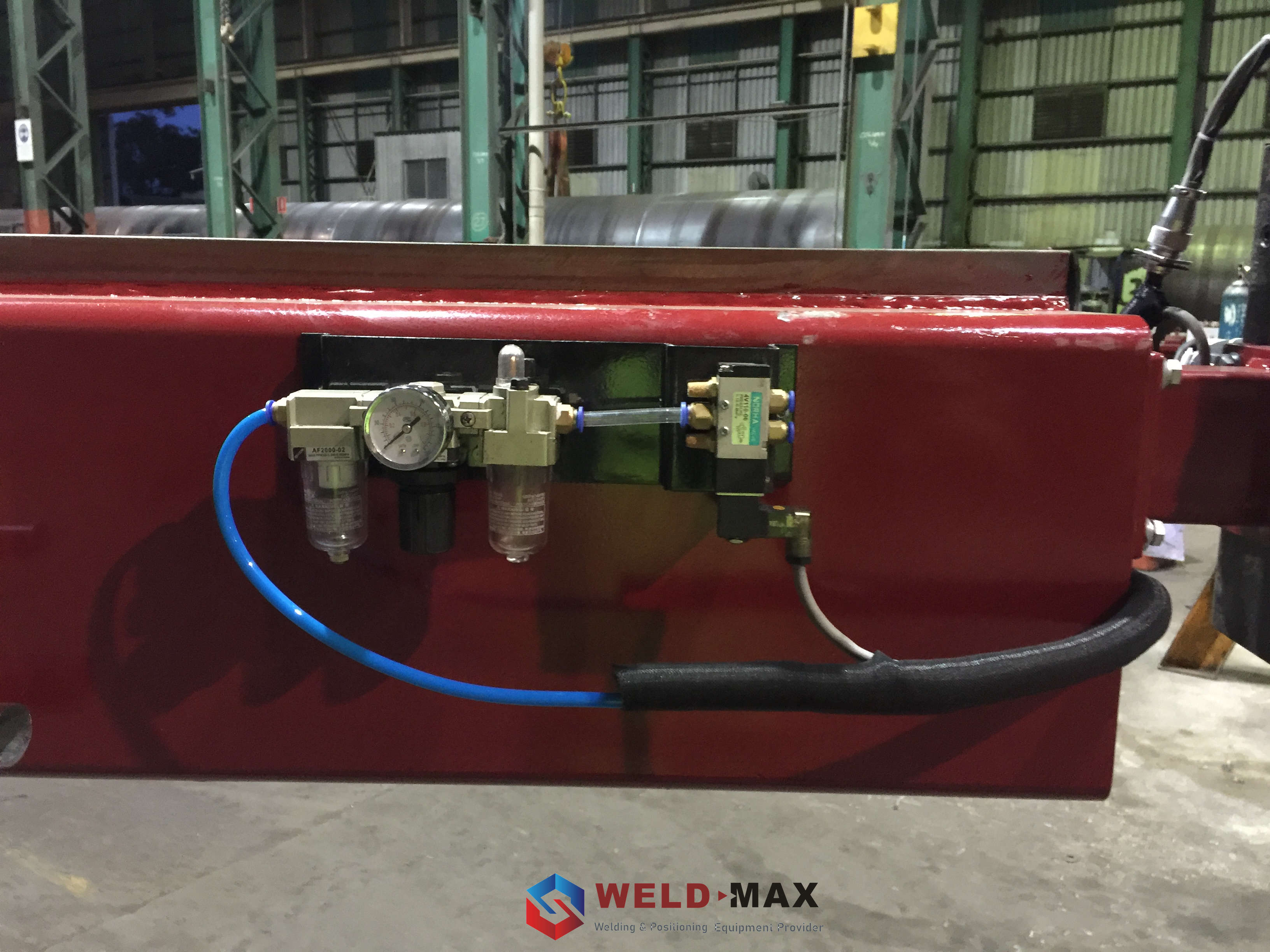

LH5070 Welding Manipulator With 5M Vertical Stroke And 7M Horizontal Stroke
Weld-Max have a huge inventory of welding manipulators including column and boom (C&B) manipulators suited to any welding application.
All our machinery has a robust construction to cope with the most demanding of environments.

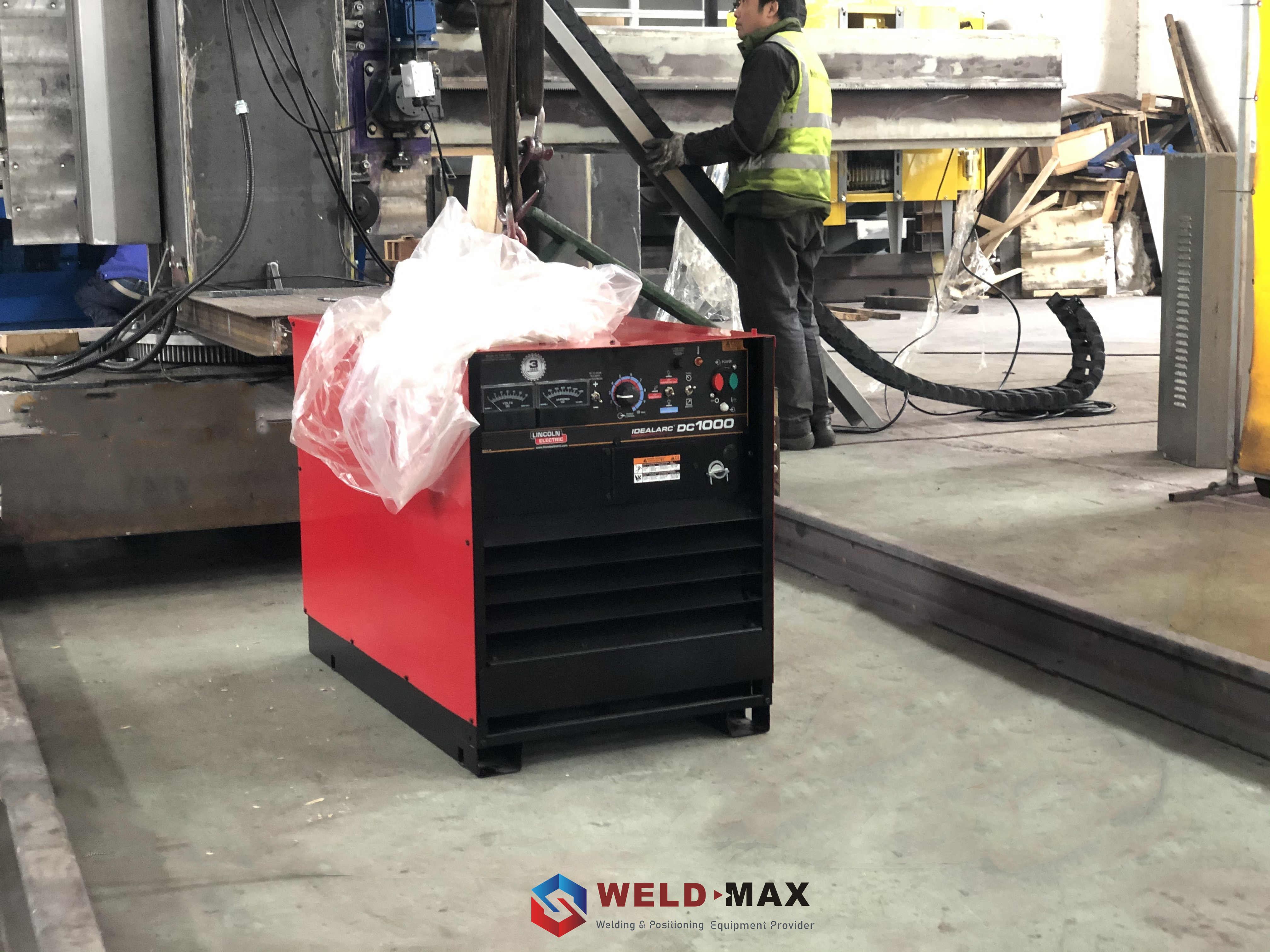

Our welding manipulators are suited to all pipe and tank welding applications, pressure vessel boiler welding, tubular sectioning and can be integrated into all processes including SAW, TIG, MIG/MAG.
The main difference between our welding manipulators and other ranges of machinery are that these are designed to move the weld head over the work piece rather than mechanically re-positioning the work piece.
Welders can reach difficult to get to areas, achieve top quality welds with better deposition rates and work safer too.
Our rigs range in sizes from 2m x 2m, going all the way up to 10m x 10m. Both the column and boom are made of 100% steel to cope with the harshest demands.
We offer a variety of designs, configurations and customisations – guaranteeing you get the right machinery to deliver results.
Technical Parameters:
| Model | Boom | Column | Traveling cart | Power KW | |||||
| Vertical stroke(A)m | Horizontal stroker(B)m | Elevation speed m/min | Traverse speed m/min | Max load at extremity kg | Total height(C)m | Dimensions (D)×(E)×H m | Rail c to c(F)mm | ||
| LH1515 | 1.5 | 1.5 | 0.3 |
0.12~1.2 |
100 | 2.9 | 1.25×1.2×0.2 | 1052 | 0.91 |
| LH2020 | 2.0 | 2.0 | 0.3 | 100 | 3.4 | 1.25×1.2×0.2 | 1052 | 0.91 | |
| LH3030 | 3.0 | 3.0 | 1.0 | 200 | 5.5 | 2.4×1.9×0.4 | 1600 | 2.75 | |
| LH3040 | 3.0 | 4.0 | 1.0 | 200 | 5.5 | 2.4×1.9×0.4 | 1600 | 2.75 | |
| LH4040 | 4.0 | 4.0 | 1.0 | 200 | 6.5 | 2.4×1.9×0.4 | 1600 | 2.75 | |
| LH4050 | 4.0 | 5.0 | 1.0 | 200 | 6.5 | 2.4×1.9×0.4 | 1600 | 2.75 | |
| LH5050 | 5.0 | 5.0 | 0.9 | 300 | 7.8 | 2.6×2.1×0.5 | 1798 | 3.5 | |
| LH5060 | 5.0 | 6.0 | 0.9 | 300 | 7.8 | 2.6×2.1×0.5 | 1798 | 3..5 | |
| LH6060 | 6.0 | 6.0 | 0.9 | 300 | 9.7 | 2.6×2.1×0.5 | 1798 | 3.5 | |
