5T Vertical Standard Hydraulic Pipe Welding Turning Table With 3JAWS Chuck
5T Vertical Standard Hydraulic Pipe Welding Turning Table With 3JAWS Chuck
Quickly Detailed:
Type:Welding Turning Table
Brand:Weld-Max
Condition:100% brand new
Model number:HBJS
Capacity:600kg-500,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Application:
Welding Table major used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.
Product Description:

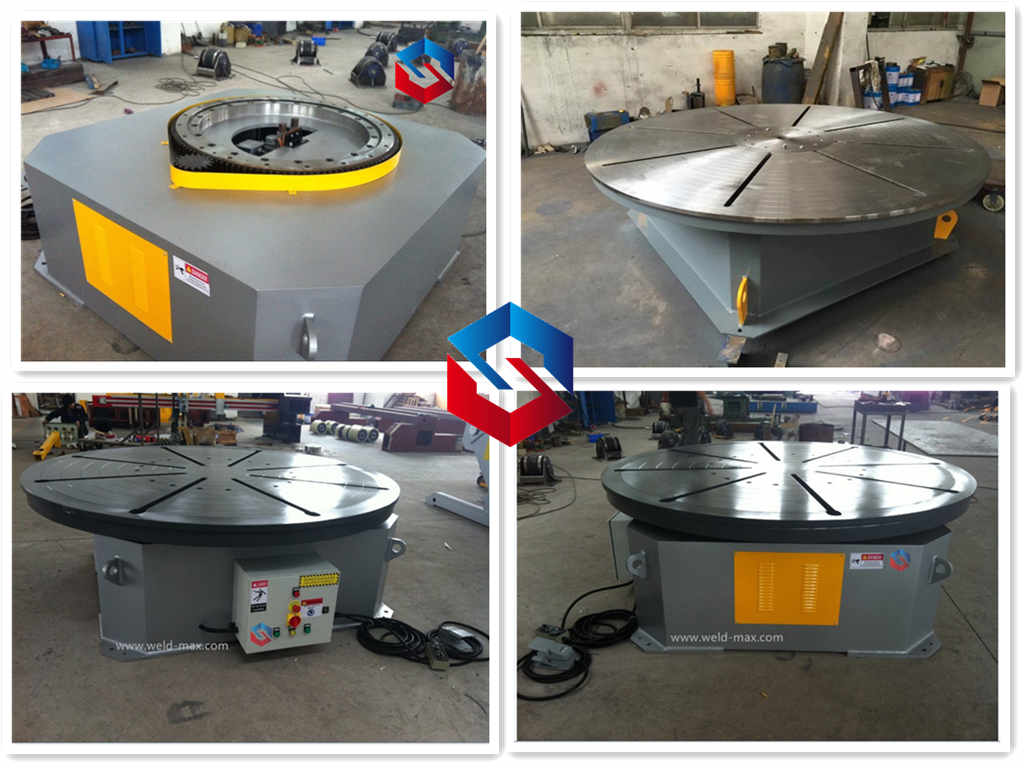

They can be used for a variety of work tasks including flame cutting, assembly, X-ray inspection, positioning work for machining as well as for positioning weldments.They are made from high quality steel in distortion-free welded construction. Horizontal welding rotary table is implementation artifacts around the vertical axis rotation displacement of welding equipment, rotary table stepless adjustable speed,it is mainly used for pipe, flange artifacts of welding, welding or cutting, or welding pipe and flange, etc., can also be used for assembly, cutting, inspection, grinding, painting etc.
Product Parameter:
|
Model |
Rated load Cap (tons) |
Power (kw) |
Max Gravity height (mm) |
Max |
Table |
Max Rotation Ф@ 90 degree |
Tilt Angle (degree) |
|||
|
Rotation |
Tilt |
Speed(rpm) |
Diameter (mm) |
|||||||
|
Rotation |
Tilt (constant) |
|||||||||
|
HBJS-1 |
0.1 |
0.06 |
man. |
150 |
100 |
0.40~4.0 |
man. |
400 |
600 |
0~90 |
|
HBJS-3 |
0.3 |
0.37 |
man. |
200 |
150 |
0.10~1.0 |
man. |
300 |
800 |
0~90 |
|
HBJS-6 |
0.6 |
0.75 |
0.75 |
200 |
150 |
0.10~1.0 |
1.1 |
1000 |
1500 |
0~90 |
|
HBJS-10 |
1 |
1.1 |
1.5 |
250 |
200 |
0.05~05 |
0.67 |
1200 |
2000 |
0~120 |
|
HBJS-20 |
2 |
1.1 |
1.5 |
300 |
200 |
0.05~05 |
0.23 |
1400 |
2100 |
0~120 |
|
HBJS-30 |
3 |
1.5 |
2.2 |
300 |
200 |
0.05~05 |
0.23 |
1400 |
2100 |
0~120 |
|
HBJS-50 |
5 |
2.2 |
3 |
300 |
200 |
0.05~05 |
0.14 |
1500 |
2500 |
0~120 |
|
HBJS-80 |
8 |
2.2 |
4 |
400 |
200 |
0.02~0.2 |
0.14 |
2000 |
3200 |
0~120 |
|
HBJS-100 |
10 |
3 |
5.5 |
400 |
200 |
0.02~0.2 |
0.14 |
2000 |
3200 |
0~120 |
|
HBJS-150 |
15 |
3 |
5.5 |
450 |
200 |
0.015~0.15 |
0.1 |
2200 |
3200 |
0~120 |
|
HBJS-200 |
20 |
4 |
7.5 |
450 |
200 |
0.015~0.15 |
0.1 |
2300 |
3200 |
0~120 |
