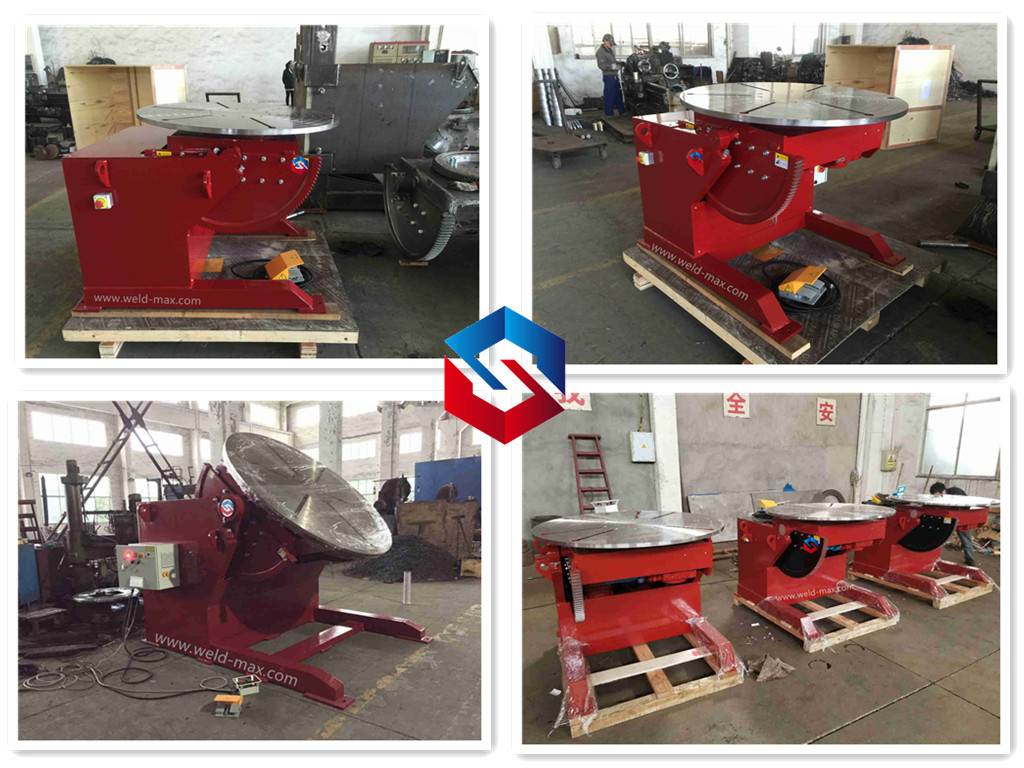

HBJ-40 Red Fixed Welding Positioner With Horizontal Turning Table And 5 JAWS Chuck
HBJ-40 Red Fixed Welding Positioner With Horizontal Turning Table And 5 JAWS Chuck
Quickly Details:
Type: Fixed Welding Positioner
Brand：Weld-Max
Model number: HBJ
Capacity:1000kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Application:
Fixed Welding Positioner major used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.
Product Description:
The positioner can be supplied for interfacing with robot or welding manipulators,to realize the welding automation.At the same time we can design and customize various type of special positioner according to the technological requirement and different work piece given by the customer.Welding positioner series can divide into side tilting type , head to tail rotary type, head& tailstock lifting rotary type, head& tailstock tilting type, double rotary type positioner. We can design and customize the positioners according the customers’ workpiece and welding procedure.
Product Parameter:
|
Model |
Rated load Cap (tons) |
Power (kw) |
Max Gravity height (mm) |
Max |
Table |
Max Rotation Ф@ 90 degree |
Tilt Angle (degree) |
|||
|
Rotation |
Tilt |
Speed(rpm) |
Diameter (mm) |
|||||||
|
Rotation |
Tilt (constant) |
|||||||||
|
HBJ-1 |
0.1 |
0.06 |
man. |
150 |
100 |
0.40~4.0 |
man. |
400 |
600 |
0~90 |
|
HBJ-3 |
0.3 |
0.37 |
man. |
200 |
150 |
0.10~1.0 |
man. |
300 |
800 |
0~90 |
|
HBJ-6 |
0.6 |
0.75 |
0.75 |
200 |
150 |
0.10~1.0 |
1.1 |
1000 |
1500 |
0~90 |
|
HBJ-10 |
1 |
1.1 |
1.5 |
250 |
200 |
0.05~05 |
0.67 |
1200 |
2000 |
0~120 |
|
HBJ-20 |
2 |
1.1 |
1.5 |
300 |
200 |
0.05~05 |
0.23 |
1400 |
2100 |
0~120 |
|
HBJ-30 |
3 |
1.5 |
2.2 |
300 |
200 |
0.05~05 |
0.23 |
1400 |
2100 |
0~120 |
|
HBJ-50 |
5 |
2.2 |
3 |
300 |
200 |
0.05~05 |
0.14 |
1500 |
2500 |
0~120 |
|
HBJ-80 |
8 |
2.2 |
4 |
400 |
200 |
0.02~0.2 |
0.14 |
2000 |
3200 |
0~120 |
|
HBJ-100 |
10 |
3 |
5.5 |
400 |
200 |
0.02~0.2 |
0.14 |
2000 |
3200 |
0~120 |
|
HBJ-150 |
15 |
3 |
5.5 |
450 |
200 |
0.015~0.15 |
0.1 |
2200 |
3200 |
0~120 |
|
HBJ-200 |
20 |
4 |
7.5 |
450 |
200 |
0.015~0.15 |
0.1 |
2300 |
3200 |
0~120 |
