HGZ-60 Simple Opreation Stepless Self-aligning Rolls With 6-60m/h Wheel Vecolity
HGZ-60 Simple Opreation Stepless Self-aligning Rolls With 6-60m/h Wheel Vecolity
Quickly Details:
Type:Self-aligning Welding Rotator
Brand:Weld-Max
Condition:100% brand new
Model number:HGK
Capacity:5Ton – 1000Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Application:
1Pressure vessels
2Wind power fabrication
3Pipe manufacturing industries
4Any heavy cylindrical job
Product Description:

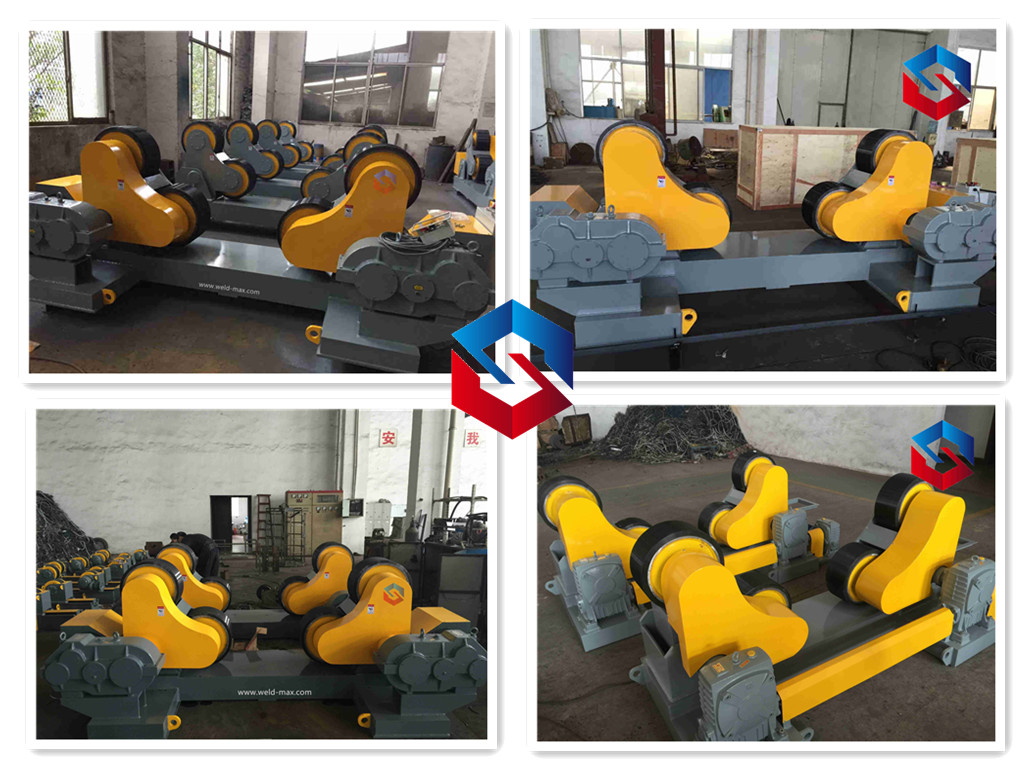

This equipment consistd of one set drive rotator,one set idler rotator and control system,cause the vessel diameter more big so we used double driver type,means two motor with driver gear reducer drive to toller to rotation,so the Large driving capacity with lower failure rate.Frequency conversion speed control system adopts schneider, with wide range and constant torque speed control characteristics,stable speed control, high overall stability and strong interference ability.Roller used import material of PU and add big the touch area.Electric control system mainly consists of electric controlb and wireless remote control box.
Product Parameter:
|
Type |
Max loading (kg) |
Vessel diameter(mm) |
Dia. and width of the wheel(mm) |
Roller linear velocity(m/h)
6-60
|
Power of motor(kw) |
|
|
Rubber rollers |
Metal rollers |
|||||
|
HGZ-5 |
5,000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
0.75 |
|
|
HGZ-10 |
10,000 |
Φ320-2800 |
Φ300×120 |
2×Φ290×25 |
1.1 |
|
|
HGZ-20 |
20,000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
1.5 |
|
|
HGZ-40 |
40,000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
3.0 |
|
|
HGZ-60 |
60,000 |
Φ750-4800 |
Φ450×120 |
2×Φ440×50 |
4.0 |
|
|
HGZ-80 |
80,000 |
Φ850-5000 |
Φ500×120 |
2×Φ490×60 |
2X3 |
|
|
HGZ-100 |
100,000 |
Φ1000-5500 |
Φ500×120 |
2×Φ490×80 |
2X3 |
|
|
HGZ-150 |
150,000 |
Φ1000-6000 |
/ |
Φ620×220 |
2X4 |
|
|
HGZ-250 |
250,000 |
Φ1800-7500 |
/ |
Φ660×260 |
2X5.5 |
|
|
HGZ-500 |
500,000 |
Φ1800-8000 |
/ |
Φ750×400 |
2X7.5 |
|
