HGZ-60 Yellow Self-aligned Tank Vessel Tube Welding Rotator With 6-60m/h Wheel Velocity
HGZ-60 Yellow Self-aligned Tank Vessel Tube Welding Rotator With 6-60m/h Wheel Velocity
Quickly Details:
Type:Self-aligning Welding Rotator
Brand:Weld-Max
Condition:100% brand new
Model number:HGZ
Capacity:5Ton – 150Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Application:
1Pressure vessels
2Pipe manufacturing industries
3Wind power fabrication
4Chemical & fuel storage tank fabrication
5Any heavy cylindrical job
Product Dsecription:

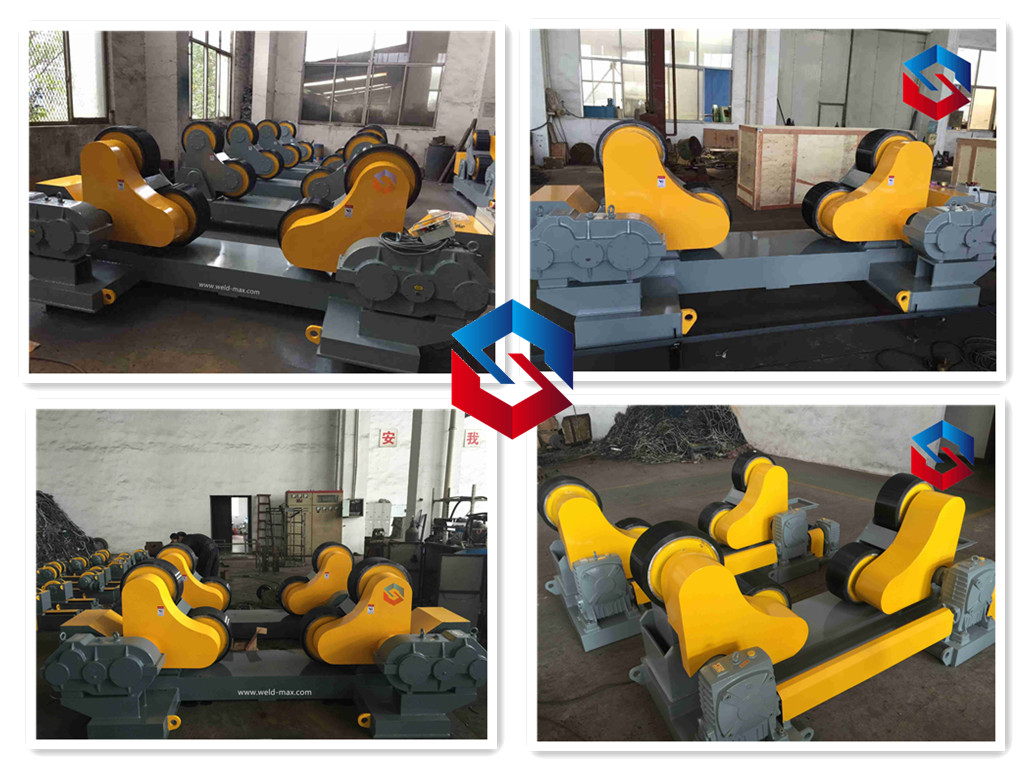

This equipment consistd of one set drive rotator,one set idler rotator and control system,cause the vessel diameter more big so we used double driver type,means two motor with driver gear reducer drive to toller to rotation,so the Large driving capacity with lower failure rate.Drive and ilder of rolle bed all install two group can be rotation to some angle of roller unit,so it’s can be adjust follow with the vessel different,then guarantee the vessel will be stably when its rotation.Electric control box and drive rotator install together so easy to arrange transport.
Product Parameter:
|
Type |
Max loading (kg) |
Vessel diameter(mm) |
Dia. and width of the wheel(mm) |
Roller linear velocity(m/h)
6-60
|
Power of motor(kw) |
|
|
Rubber rollers |
Metal rollers |
|||||
|
HGZ-5 |
5,000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
0.75 |
|
|
HGZ-10 |
10,000 |
Φ320-2800 |
Φ300×120 |
2×Φ290×25 |
1.1 |
|
|
HGZ-20 |
20,000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
1.5 |
|
|
HGZ-40 |
40,000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
3.0 |
|
|
HGZ-60 |
60,000 |
Φ750-4800 |
Φ450×120 |
2×Φ440×50 |
4.0 |
|
|
HGZ-80 |
80,000 |
Φ850-5000 |
Φ500×120 |
2×Φ490×60 |
2X3 |
|
|
HGZ-100 |
100,000 |
Φ1000-5500 |
Φ500×120 |
2×Φ490×80 |
2X3 |
|
|
HGZ-150 |
150,000 |
Φ1000-6000 |
/ |
Φ620×220 |
2X4 |
|
|
HGZ-250 |
250,000 |
Φ1800-7500 |
/ |
Φ660×260 |
2X5.5 |
|
|
HGZ-500 |
500,000 |
Φ1800-8000 |
/ |
Φ750×400 |
2X7.5 |
|
