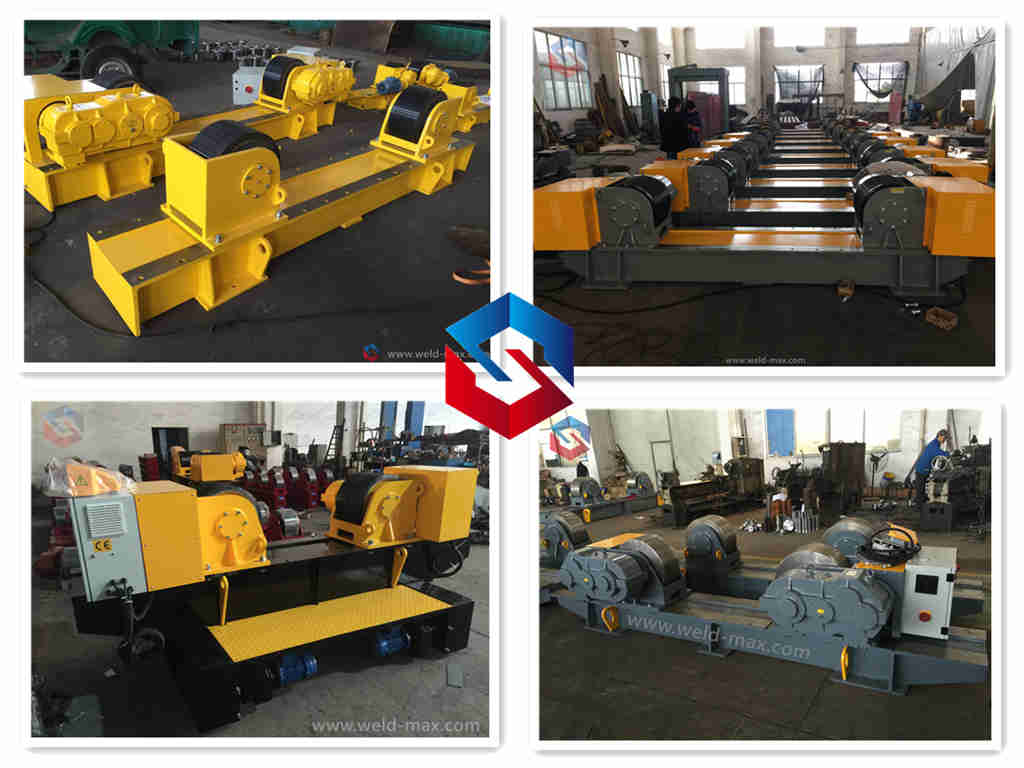

Pipe Automatic Hprizontal Welding Conventional Rotator With PU Wheels
Pipe Automatic Hprizontal Welding Conventional Rotator With PU Wheels
Quickly Details:
Type:Conventional Welding Rotator
Brand:Weld-Max
Condition:100% brand new
Model number:HGK
Capacity:5Ton – 1000Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Product Parameter:
|
Type |
Max loading (kg) |
Vessel diameter(mm) |
Dia. and width of the wheel(mm) |
Roller linear velocity(m/h)
6-60
|
Power of motor(kw) |
|
|
Rubber rollers |
Metal rollers |
|||||
|
HGK-5 |
5,000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
2X0.37 |
|
|
HGK-10 |
10,000 |
Φ320-2800 |
Φ300×120 |
2×Φ290×25 |
2X0.55 |
|
|
HGK-20 |
20,000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
2X0.75 |
|
|
HGK-40 |
40,000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
2X1.5 |
|
|
HGK-60 |
60,000 |
Φ750-4800 |
Φ450×120 |
2×Φ440×50 |
2X2.2 |
|
|
HGK-80 |
80,000 |
Φ850-5000 |
Φ500×120 |
2×Φ490×60 |
2X3 |
|
|
HGK-100 |
100,000 |
Φ1000-5500 |
Φ500×120 |
2×Φ490×80 |
2X3 |
|
|
HGK-150 |
150,000 |
Φ1000-6000 |
/ |
Φ620×220 |
2X4 |
|
|
HGK-250 |
250,000 |
Φ1800-7500 |
/ |
Φ660×260 |
2X5.5 |
|
|
HGK-500 |
500,000 |
Φ1800-8000 |
/ |
Φ750×400 |
2X7.5 |
|
Application:
1.Wind power fabrication
2.Any heavy cylindrical job
3.Match up with other tools for welding or assembling for cone and section equality solid of revolution
Product Descripton:
1.Our designed manufactured HGK type Welding Welding Rotator absorbs the excellence from the same products from the domestic and forign market manufacturing, which is made according to the pressure vessel manufacturer’s requirement.
2.Rotation used AC variable frequency motor to driver,the reducer used gear type reducer with structure more compact and the driving ability is stronger.
3.The electric control box with VFD adjust speed system to consists,main used contorl motor action to realize technology require of machine action,also control and protect the roller motor,mainly lower voltage elements used Schneider with more sare and reliable.
|
Type |
Max loading (kg) |
Vessel diameter(mm) |
Dia. and width of the wheel(mm) |
Roller linear velocity(m/h)
6-60
|
Power of motor(kw) |
|
|
Rubber rollers |
Metal rollers |
|||||
|
HGK-5 |
5,000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
2X0.37 |
|
|
HGK-10 |
10,000 |
Φ320-2800 |
Φ300×120 |
2×Φ290×25 |
2X0.55 |
|
|
HGK-20 |
20,000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
2X0.75 |
|
|
HGK-40 |
40,000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
2X1.5 |
|
|
HGK-60 |
60,000 |
Φ750-4800 |
Φ450×120 |
2×Φ440×50 |
2X2.2 |
|
|
HGK-80 |
80,000 |
Φ850-5000 |
Φ500×120 |
2×Φ490×60 |
2X3 |
|
|
HGK-100 |
100,000 |
Φ1000-5500 |
Φ500×120 |
2×Φ490×80 |
2X3 |
|
|
HGK-150 |
150,000 |
Φ1000-6000 |
/ |
Φ620×220 |
2X4 |
|
|
HGK-250 |
250,000 |
Φ1800-7500 |
/ |
Φ660×260 |
2X5.5 |
|
|
HGK-500 |
500,000 |
Φ1800-8000 |
/ |
Φ750×400 |
2X7.5 |
|
