Top Quality And Easy Operation Vessel Self-aligning Welding Turning Rolls With Width 180mm PU Wheels
Top Quality And Easy Operation Vessel Self-aligning Welding Turning Rolls With Width 180mm PU Wheels
Quickly Details:
Type:Self-aligning Welding Rotator
Brand:Weld-max
Condition:100% brand new
Model number:HGZ
Capacity:5Ton – 150Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Product Parameter：
|
Type |
Max loading (kg) |
Vessel diameter(mm) |
Dia. and width of the wheel(mm) |
Roller linear velocity(m/h)
6-60
|
Power of motor(kw) |
|
|
Rubber rollers |
Metal rollers |
|||||
|
HGZ-5 |
5,000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
0.75 |
|
|
HGZ-10 |
10,000 |
Φ320-2800 |
Φ300×120 |
2×Φ290×25 |
1.1 |
|
|
HGZ-20 |
20,000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
1.5 |
|
|
HGZ-40 |
40,000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
3.0 |
|
|
HGZ-60 |
60,000 |
Φ750-4800 |
Φ450×120 |
2×Φ440×50 |
4.0 |
|
|
HGZ-80 |
80,000 |
Φ850-5000 |
Φ500×120 |
2×Φ490×60 |
2X3 |
|
|
HGZ-100 |
100,000 |
Φ1000-5500 |
Φ500×120 |
2×Φ490×80 |
2X3 |
|
|
HGZ-150 |
150,000 |
Φ1000-6000 |
/ |
Φ620×220 |
2X4 |
|
|
HGZ-250 |
250,000 |
Φ1800-7500 |
/ |
Φ660×260 |
2X5.5 |
|
|
HGZ-500 |
500,000 |
Φ1800-8000 |
/ |
Φ750×400 |
2X7.5 |
|
Application:
1.Pressure vessels
2.Pipe manufacturing industries
3.Wind power fabrication
4.Chemical & fuel storage tank fabrication
5.Any heavy cylindrical job

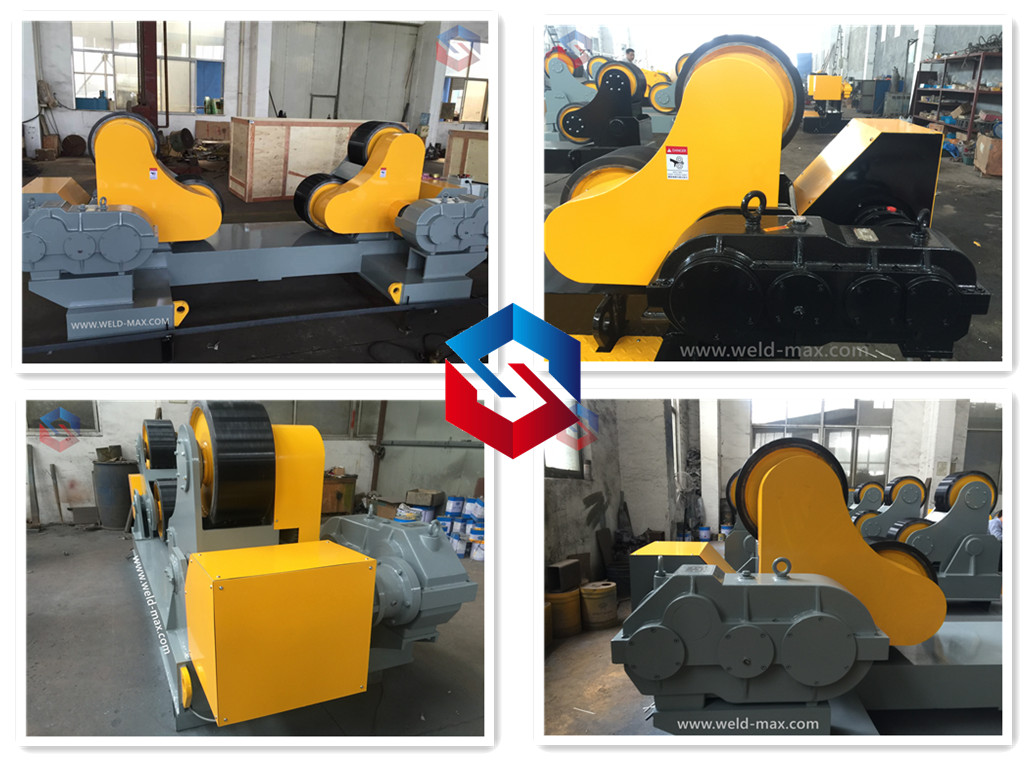

Product Description:
This equipment consistd of one set drive rotator,one set idler rotator and control system.Drive and ilder of rolle bed all install two group can be rotation to some angle of roller unit,so it’s can be adjust follow with the vessel different,then guarantee the vessel will be stably when its rotation.Roller used import material of PU and add big the touch area.The electric system match with wireless control and special make by Ronniewell all kinds of button are all with english mark.
