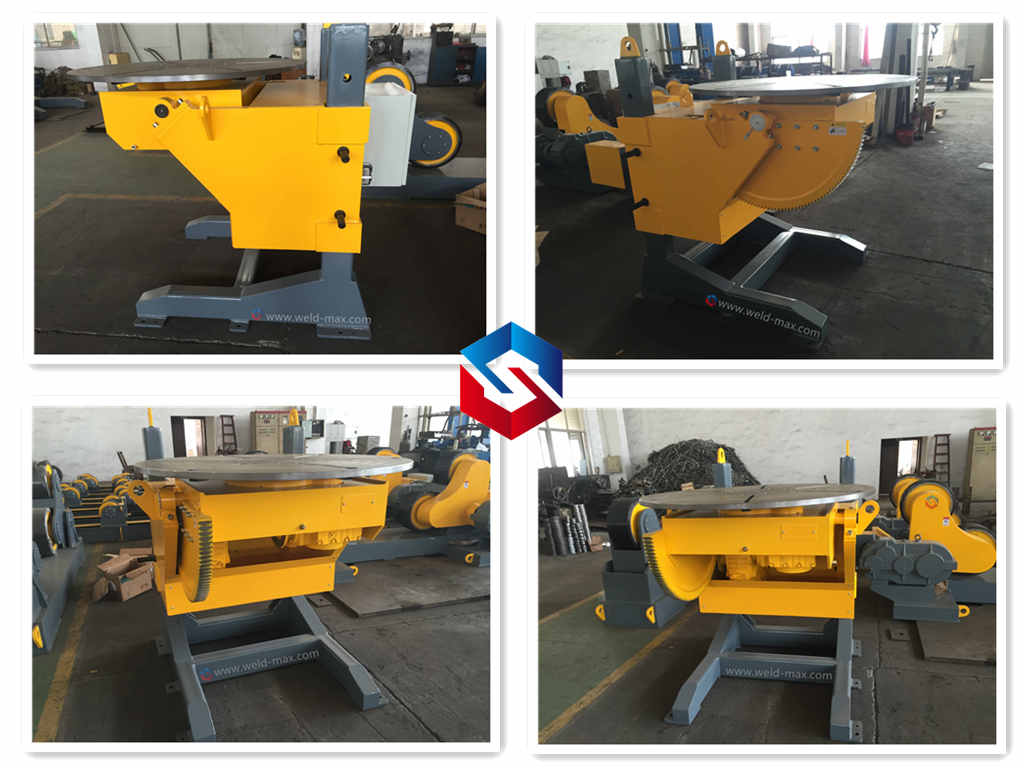

Yellow Elevating Welding Positioner With 0-120° Turong Angle
Quickly Details:
Type:Elevating Welding Positioner
Brand:Weld Max
Condition:100% brand new
Model number:EHBJ
Capacity:1000kg-200,000 kg

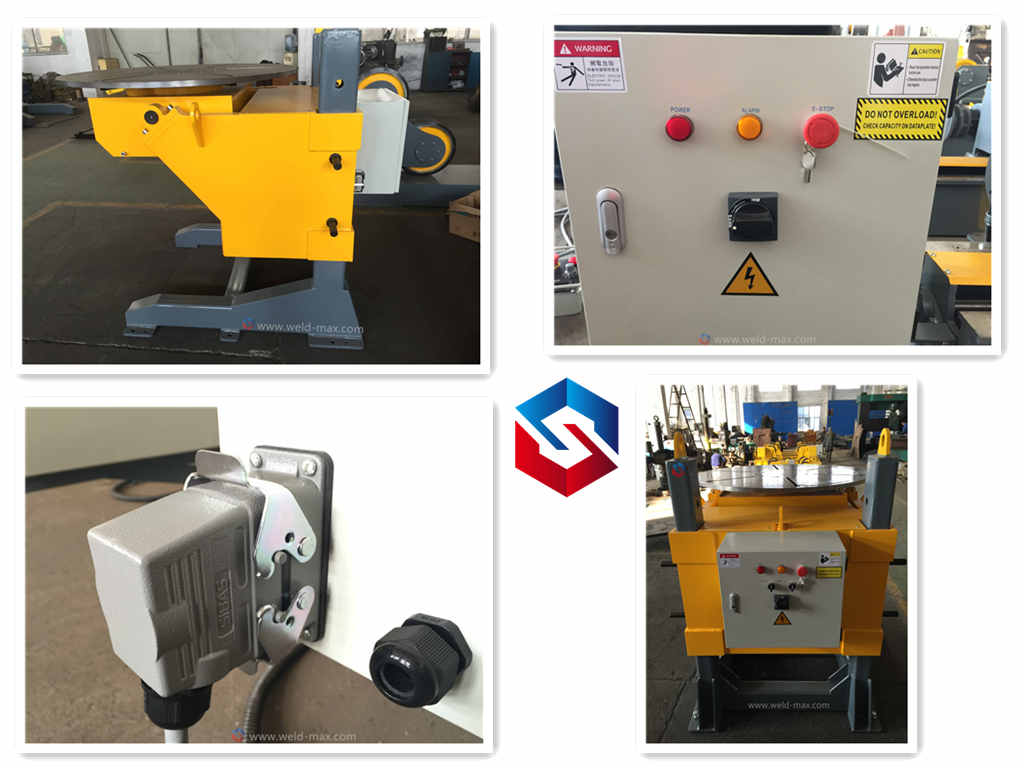

Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Product Description:
Welding positioner consists of working table rotation unit and tilting unit. By the working table elevating, the workpiece can be positioned and achieve the welding position by the worktable tilting and rotating. The working talbe rotating is controlled by variable frequency and stepless, which could get the satisfied welding speed.
Features:
1. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed.
2. Remote control box can realize the remote operation of work bench, also can connect with operating machines to realize linkage operation.
3. Used to pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure.
4. Set aside interface to realize linkage work with manipulator and hanging automatic welding machine achieve automatic welding center.
5. Rotate unit is driven by motor. It has a precise speed-adjusting and reliable position.
Application:
1. Pressure vessels
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job
Product Parameter:
|
Model |
Rated load Cap (tons) |
Power (kw) |
Max Gravity height (mm) |
Max |
Table |
Max Rotation Ф@ 90 degree |
Tilt Angle (degree) |
|||
|
Rotation |
Tilt |
Speed(rpm) |
Diameter (mm) |
|||||||
|
Rotation |
Tilt (constant) |
|||||||||
|
EHBJ-10 |
1 |
1.1 |
1.5 |
250 |
200 |
0.05~05 |
0.67 |
1200 |
2000 |
0~120 |
|
EHBJ-20 |
2 |
1.1 |
1.5 |
300 |
200 |
0.05~05 |
0.23 |
1400 |
2100 |
0~120 |
|
EHBJ-30 |
3 |
1.5 |
2.2 |
300 |
200 |
0.05~05 |
0.23 |
1400 |
2100 |
0~120 |
|
EHBJ-50 |
5 |
2.2 |
3 |
300 |
200 |
0.05~05 |
0.14 |
1500 |
2500 |
0~120 |
|
EHBJ-80 |
8 |
2.2 |
4 |
400 |
200 |
0.02~0.2 |
0.14 |
2000 |
3200 |
0~120 |
|
EHBJ-100 |
10 |
3 |
5.5 |
400 |
200 |
0.02~0.2 |
0.14 |
2000 |
3200 |
0~120 |
|
EHBJ-150 |
15 |
3 |
5.5 |
450 |
200 |
0.015~0.15 |
0.1 |
2200 |
3200 |
0~120 |
|
EHBJ-200 |
20 |
4 |
7.5 |
450 |
200 |
0.015~0.15 |
0.1 |
2300 |
3200 |
0~120 |
